zirconium wire mesh zirconium gas liquid filter zirconium foam net

Price:	550.0~4590.0 USD
Payment Terms:	T/T,L/C,WU
Special Groups:	zirconium wire mesh,zirconium gas liquid (1)
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: UNS ZR60702,ZR60705

Production Capacity: 50

Delivery Date: 3 days

Type: Woven

Brand Name: ofolan zirconium mesh

Filtration precision: 20 mesh

Means of Transport: Air

Packing: High strength of paper tube...

Application: Filter

Material: Others

Mesh Size: 20 mesh

Description:zirconium mesh, zirconium wire mesh,zirconium gas liquid filter,zirconium foam net
Material: ZR-2, ZR-4, R60702, R60705

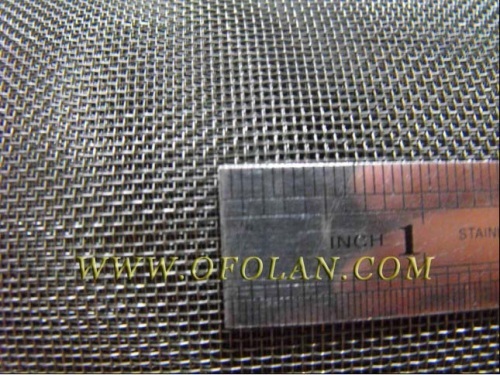

Zirconium mesh | zirconium wire mesh | zirconium filter screen

Description:zirconium mesh, zirconium wire mesh,zirconium gas liquid filter,zirconium foam net

Material: ZR-2, ZR-4, R60702, R60705

The wire diameter: 0.10mm--2.0mm

Mesh: 0.5 --100 mesh

Zirconium mesh features: zirconium wire weaving network are high melting point metal woven wire mesh, density 6.49 g/cm3, melting point 1850 ℃, boiling point 4370 ℃, pure zirconium net surface is easy to form a layer of oxide film, with metallic luster, so the appearance is similar to steel. Zirconium screen with super corrosion resistance, and corrosion resistance is superior to the titanium, not soluble in hydrofluoric acid and aqua regia. In high temperature environment, can react with nonmetallic elements and many metal elements, compounds generated solid solution (such as zirconium nitride screen preparation of metal matrix composites).

Zirconium web application: corrosion resistance, high melting point, high hardness and strength features, can be used in aerospace, military industry, vacuum high temperature equipment, petrochemical industry, medicine, machinery manufacturing and other fields

Zirconium mesh standard of choose and buy is as follows:

MESH(inch)	Wire diameter(mm)	Aperture (mm)	Maximum width(m)
10	0.60	1.94	1.60
20	0.40	0.87	1.60
30	0.30	0.55	1.60
40	0.23	0.40	1.60
50	0.20	0.31	1.60
60	0.15	0.27	1.60
70	0.12	0.24	1.60
80	0.13	0.19	1.60
90	0.12	0.16	1.60
100	0.10	0.15	1.60
120	0.09	0.12	1.60
150	0.063	0.11	1.60
180	0.053	0.01	1.60
200	0.053	0.07	1.60
Special specifications can be produced according to customer requirements
